轴承类型：；两个滚珠轴承
材料：；叶轮和；框架：塑料（UL94V-0）
引线：； UL1007 AWG26
；红线正极（+）
；黑线负极(一)
重量： 20.0克

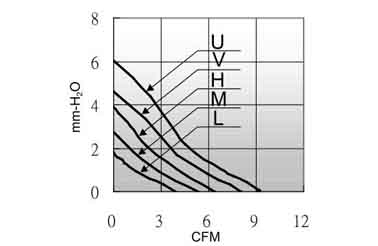

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA04010_05L | B/F/S | 5 | 4.5~5.5 | 0.16 | 4000 | 3.91 | 0.07 | 21 |
| WSA04010_12L | B/F/S | 12 | 7.0~13.2 | 0.08 | 4000 | 3.91 | 0.07 | 21 |
| WSA04010_05M | B/F/S | 5 | 4.5~5.5 | 0.18 | 5000 | 5.3 | 0.11 | 25 |
| WSA04010_12M | B/F/S | 12 | 7.0~13.2 | 0.1 | 5000 | 5.3 | 0.18 | 25 |
| WSA04010_24M | B/F/S | 24 | 14.0~24.6 | 0.06 | 5000 | 5.3 | 0.18 | 25 |
| WSA04010_05H | B/F/S | 5 | 4.5~5.5 | 0.2 | 6000 | 6.36 | 0.15 | 29 |
| WSA04010_12H | B/F/S | 12 | 7.0~13.2 | 0.14 | 6000 | 6.36 | 0.15 | 29 |
| WSA04010_24H | B/F/S | 24 | 14.0~24.6 | 0.08 | 6000 | 6.36 | 0.15 | 29 |
| WSA04010_05U | B/F/S | 5 | 4.5~5.5 | 0.22 | 7000 | 7.92 | 0.18 | 33 |
| WSA04010_12U | B/F/S | 12 | 7.0~13.2 | 0.18 | 7000 | 7.92 | 0.18 | 33 |
| WSA04010_24U | B/F/S | 24 | 14.0~24.6 | 0.1 | 7000 | 7.92 | 0.18 | 33 |
| WSA04010_12V | B/F/S | 12 | 7.0~13.2 | 0.2 | 8000 | 9.05 | 0.24 | 38 |
| WSA04010_24V | B/F/S | 24 | 14.0~24.6 | 0.12 | 8000 | 9.05 | 0.24 | 38 |
