轴承类型：；两个滚珠轴承
材料：；叶轮和；框架：塑料（UL94V-0）
引线：； UL1007 AWG26
；红线正极（+）
；黑线负极(一)
重量： 210.0g

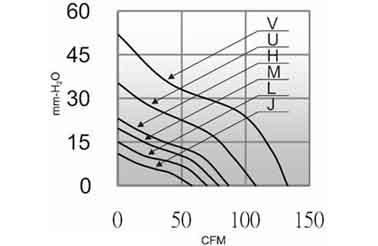

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA08038_12J | B | 12 | 7.0~13.2 | 0.4 | 4200 | 58.2 | 10.4 | 45 |
| WSA08038_24J | B | 24 | 14.0~26.4 | 0.25 | 4200 | 58.2 | 10.4 | 45 |
| WSA08038_48L | B | 48 | 28.0~56.0 | 0.14 | 4200 | 58.2 | 10.4 | 45 |
| WSA08038_12L | B | 12 | 7.0~13.2 | 0.51 | 4900 | 69.1 | 14.2 | 49 |
| WSA08038_24L | B | 24 | 14.0~26.4 | 0.41 | 4900 | 69.1 | 14.2 | 49 |
| WSA08038_48L | B | 48 | 28.0~56.0 | 0.23 | 4900 | 69.1 | 14.2 | 49 |
| WSA08038_12M | B | 12 | 7.0~13.2 | 0.6 | 5200 | 78.8 | 19.3 | 53 |
| WSA08038_24M | B | 24 | 14.0~26.4 | 0.55 | 5200 | 78.8 | 19.3 | 53 |
| WSA08038_48M | B | 48 | 28.0~56.0 | 0.33 | 5200 | 78.8 | 19.3 | 53 |
| WSA08038_12H | B | 12 | 7.0~13.2 | 0.85 | 6100 | 84.8 | 22.7 | 56 |
| WSA08038_24H | B | 24 | 14.0~26.4 | 0.78 | 6100 | 84.8 | 22.7 | 56 |
| WSA08038_48H | B | 48 | 28.0~56.0 | 0.51 | 6100 | 84.8 | 22.7 | 56 |
| WSA08038_12U | B | 12 | 7.0~13.2 | 1.55 | 7500 | 105.5 | 34.5 | 62 |
| WSA08038_24U | B | 24 | 14.0~26.4 | 1.77 | 7500 | 105.5 | 34.5 | 62 |
| WSA08038_48U | B | 48 | 28.0~56.0 | 0.58 | 7500 | 105.5 | 34.5 | 62 |
| WSA08038_12V | B | 12 | 7.0~13.2 | 2.6 | 9000 | 130 | 50.9 | 65.5 |
| WSA08038_24M | B | 24 | 14.0~26.4 | 1.8 | 9000 | 130 | 50.9 | 65.5 |
| WSA08038_24M | B | 48 | 28.0~56.0 | 0.9 | 9000 | 130 | 50.9 | 65.5 |
