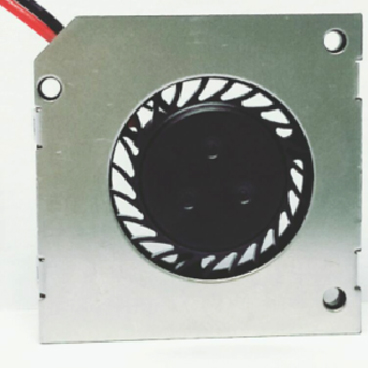

直流微鼓风机具有结构紧凑、运行精确、体积小、风量大、平衡性好、噪音小等优点。小型直流鼓风机；帮助设计师满足便携式设备的空间要求。
Find WHEE，一家具有特殊设计的微型鼓风机制造商；微型鼓风机来自中国。
FG:FG信号
RD:RD信号
PWM:PWM信号
VC:电压控制
TC:温度控制
| BEARING TYPE | F.D. Bearing /One ball /Sleeve bearing/ Two ball |
| FRAME | P B T. UL94V-0 |
| IMPELLER | P B T. UL94V-0 |
| P C B | UL94V-0 |
| MATERIAL LIST | RoHS Compliant |
| OPERATING TEMPERATURE | -10 ℃ ~ + 70 ℃ |
| STORAGE TEMPERATURE | -40 ℃ ~ + 70 ℃ |
| DIELETRIC STRENGTH | Applied a 500VAC for 1.0 minute or 600VAC for 2 seconds between housing and both lead wires. |
| INSULATION RESISTANCE | At least 10 MΩ at 500VDC between internal stator and both lead wires. |
| LIFE EXPECTANCY | 30,000(S)/40,000(F)/50,000 hrs(2B) in running conditions at 40℃ ambient. |
