轴承类型：；两个滚珠轴承
材料：；叶轮和；框架：塑料（UL94V-0）
引线：； UL1007 AWG26
；红线正极（+）
；黑线负极(一)
重量： 54.0克

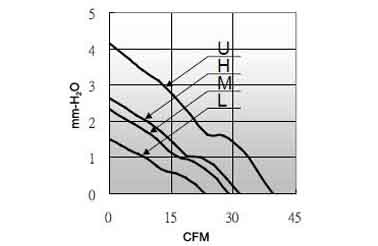

| MODEL | Bearing System | Rated Voltage | Operating Voltage Range | Input Current | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
| PART NO | B/S/F | VDE | VDE | AMP | RPM | CFM | MmH2O | Db-A |
| WSA08015_12L | B/S/F | 12 | 7.0~13.2 | 0.06 | 2400 | 23.1 | 1.5 | 28 |
| WSA08015_12M | B/S/F | 12 | 7.0~13.2 | 0.08 | 2700 | 28.9 | 2.4 | 31 |
| WSA08015_24L | B/S/F | 24 | 14.0~26.4 | 0.06 | 2700 | 28.9 | 2.4 | 31 |
| WSA08015_12H | B/S/F | 12 | 7.0~13.2 | 0.11 | 3100 | 33.1 | 2.9 | 34 |
| WSA08015_24M | B/S/F | 24 | 14.0~26.4 | 0.08 | 3100 | 33.1 | 2.9 | 34 |
| WSA08015_12U | B/S/F | 12 | 7.0~13.2 | 0.15 | 3600 | 39.6 | 4.2 | 39 |
| WSA08015_24H | B/S/F | 24 | 14.0~26.4 | 0.09 | 3600 | 39.6 | 4.2 | 39 |
| WSA08015_12V | B/S/F | 12 | 7.0~13.2 | 0.24 | 5000 | 53.5 | 7.6 | 46.1 |
